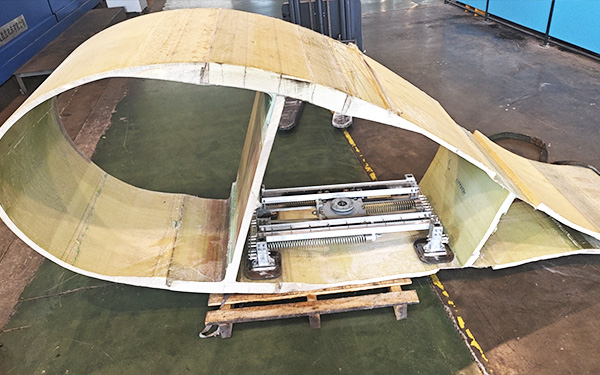

Blade tuning mass damper
Weight reduction of a single blade
Load Iteration (LAC) time reduction
Enhancement of comprehensive damping ratio of blades (5 uniformly distributed)
The displacement of the oscillator motion is only 5% of that of traditional TMD
Product performance parameters
Tuning frequency | 0.4-1.5 Hz |
Inertial mass with added drag | 15 kg/25 kg/50 kg |
Total mass ratio | >50% |
travel distance | >210 mm |
direction | swing direction |
control type | passive control |
Damping type | Nonlinear Electromagnetic |
damping ratio | 0.05-0.3 |
Check limit form | rubber buffer electromagnetic |
Installation method | Pre installation at the blade factory Wind farm installation |
Selection of dampers
Blade specifications and quality(kg) | Distance from leaf root installation(cm) | TMD quantity(25kg) | |||
1 | 3 | 6 | 10 | ||
2.00E+03 | 90 | 0.0195 | 0.0584 | 0.1167 | 0.1946 |
2.00E+04 | 50 | 0.0019 | 0.0058 | 0.0117 | 0.0195 |
4.00E+04 | 40 | 0.0010 | 0.0029 | 0.0058 | 0.0097 |
6.00E+04 | 35 | 0.0006 | 0.0019 | 0.0039 | 0.0065 |
8.00E+04 | 32 | 0.0005 | 0.0015 | 0.0029 | 0.0049 |
1.00E+05 | 30 | 0.0004 | 0.0012 | 0.0023 | 0.0039 |
1.20E+05 | 28 | 0.0003 | 0.0010 | 0.0019 | 0.0032 |
1.40E+05 | 27 | 0.0003 | 0.0008 | 0.0017 | 0.0028 |

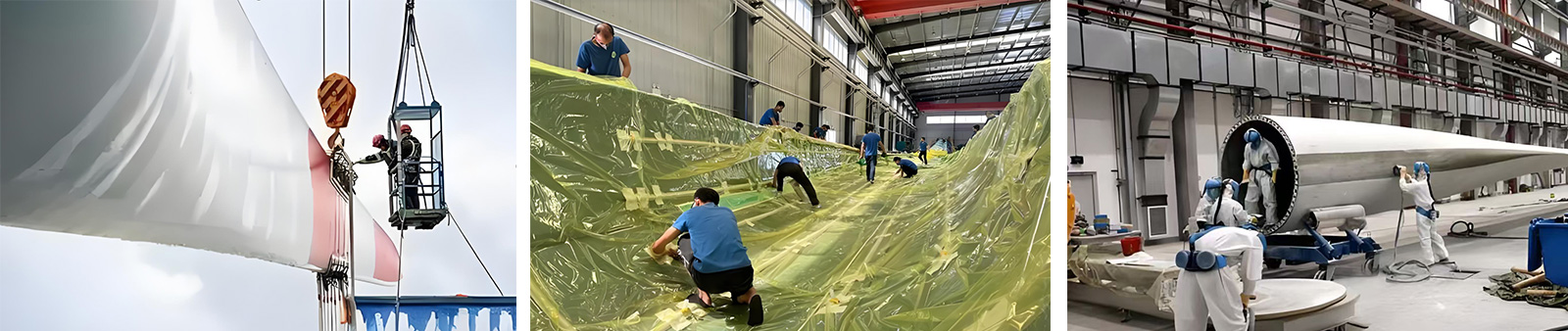

Applications and Cases
success cases
Every case is the cornerstone of customer trust, witnessing our relentless pursuit of excellent quality and profound accumulation of innovative technology. These practical achievements not only demonstrate our professional ability in solving complex manufacturing problems, but also serve as strong proof of customer trust and satisfaction. By choosing to cooperate with us, you will not only receive high-quality products and services, but also a solid support of technology and rich experience, as well as a guarantee of professionalism and trust.
