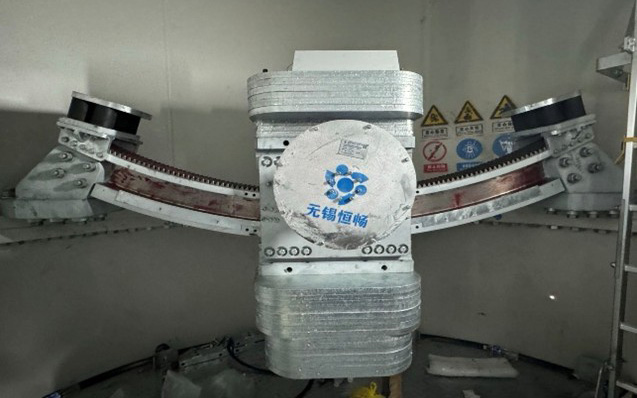

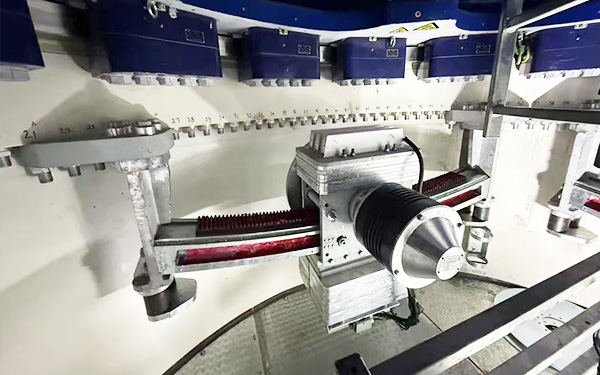

Arc track tuned mass damper
The amplitude of vortex induced vibration decreases
Space utilization efficiency improvement

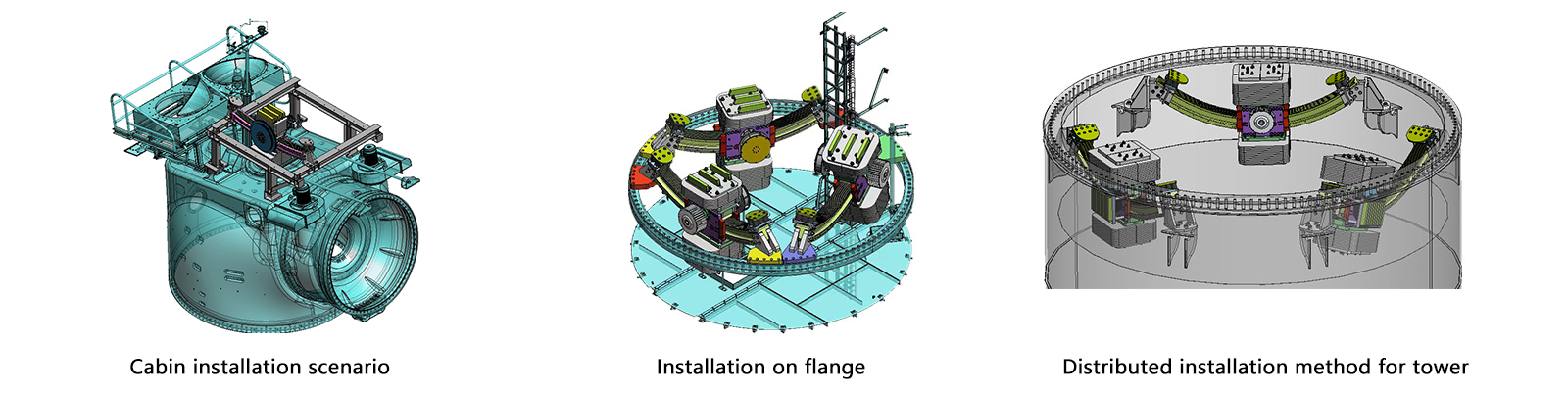

Distributed design
Save installation time
Product performance parameters
Tuning frequency | 0.15-0.4 Hz |
Damping inertia | 800 kg/7000 kg |
Swing stroke | >600 mm |
direction | one-way |
control type | Passive control semi-active control |
Damping type | electromagnetic |
damping ratio | 0.1-0.3 |
Check limit device | Rubber buffer |
install | Pre installation Wind farm installation |
Installation location | Cabin and tower |
Typical size | 2000mm*1000mm*400mm |
Selection of dampers
modal mass kg | Equivalent mass of damper 800 kg (applicable only to VIV) | Equivalent mass of damper 7000 kg (for load reduction) | ||
| TMD damping ratio ζ=0.1 | TMD damping ratio ζ=0.3 | TMD damping ratio ζ=0.1 | TMD damping ratio ζ=0.3 | |
3.00E+05 | 0.008 | 0.003 | 0.067 | 0.028 |
4.00E+05 | 0.006 | 0.002 | 0.050 | 0.021 |
5.00E+05 | 0.005 | 0.002 | 0.040 | 0.017 |
6.00E+05 | 0.004 | 0.002 | 0.034 | 0.014 |
7.00E+05 | 0.003 | 0.001 | 0.029 | 0.012 |
8.00E+05 | 0.003 | 0.001 | 0.025 | 0.010 |
9.00E+05 | 0.003 | 0.001 | 0.022 | 0.009 |
1.00E+06 | 0.002 | 0.001 | 0.020 | 0.008 |
1.10E+06 | 0.002 | 0.001 | 0.018 | 0.008 |
1.20E+06 | 0.002 | 0.001 | 0.017 | 0.007 |
1.30E+06 | 0.002 | 0.001 | 0.015 | 0.006 |
1.30E+06 | 0.002 | 0.001 | 0.014 | 0.006 |
1.50E+06 | 0.002 | 0.001 | 0.013 | 0.006 |
Applications and Cases
success cases
Every case is the cornerstone of customer trust, witnessing our relentless pursuit of excellent quality and profound accumulation of innovative technology. These practical achievements not only demonstrate our professional ability in solving complex manufacturing problems, but also serve as strong proof of customer trust and satisfaction. By choosing to cooperate with us, you will not only receive high-quality products and services, but also a solid support of technology and rich experience, as well as a guarantee of professionalism and trust.
